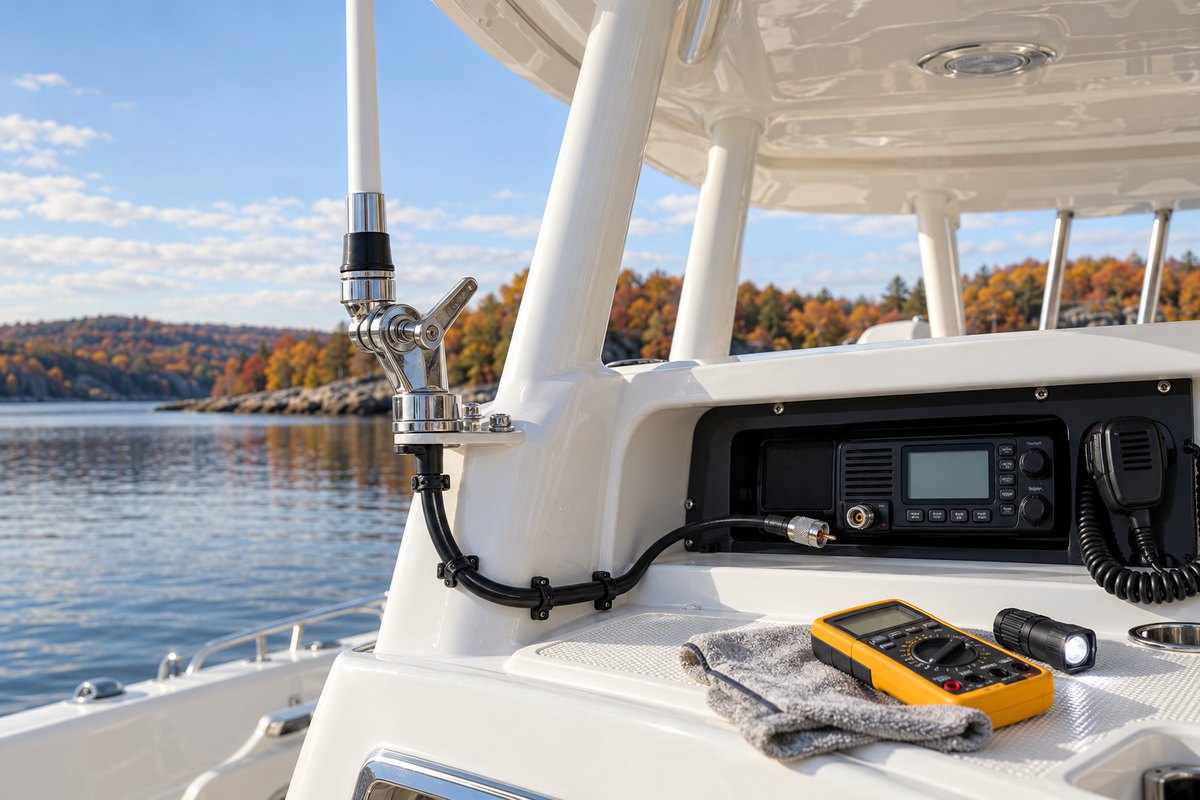

A fixed-mount VHF radio can power up, receive nearby traffic, and still have a weak transmission path because the antenna mount, coaxial cable, or connector has deteriorated. Marine VHF antenna and coax maintenance before storage provides a chance to find loose hardware, water intrusion, chafe, and connector corrosion before an unreliable radio becomes an emergency surprise.
This article applies to common fixed-mount marine VHF installations with a fiberglass or stainless antenna, 50-ohm coaxial feed line, and a UHF-style connector such as a PL-259 at the radio or antenna. AIS, cellular, Wi-Fi, AM/FM, satellite, and GPS antennas have different frequency and installation requirements. Follow the radio, antenna, mount, and boat manufacturers' instructions for the exact system.
Treat the antenna system as part of the radio
The radio chassis is only one part of the transmission path. The system also includes:
- The antenna element or fiberglass radome
- The ferrule and ratchet, rail, or mast mount
- Any stand-off brackets and extension sections
- The coaxial cable and its supports
- Connectors, adapters, bulkhead fittings, and antenna switches
- The radio's antenna socket
Damage or loss anywhere in that path can reduce useful range. Receiving a nearby weather broadcast is not a complete transmission test because the receiver can hear strong signals through a compromised feed line that performs poorly when the radio transmits.
Icom lists a 50-ohm antenna impedance for fixed-mount radios such as the IC-M506. Shakespeare installation guides similarly specify the cable routing and connector needed for each antenna. Cable and connectors should therefore be treated as matched radio-frequency components, not generic wire and hardware.
Make the inspection safe
Turn the radio off and isolate its power before disconnecting the antenna. Do not key the microphone or run an automated radio test with the coax disconnected. A transmitter is designed to operate into the specified antenna system; transmitting into an open or badly mismatched connection can stress the radio.
Also consider the physical hazards:
- Lower a ratchet-mounted antenna only when it can clear people, docks, bridges, power lines, and other equipment.
- Do not climb a mast or hardtop without appropriate access and fall protection.
- Never install or service an antenna near overhead electrical lines. Shakespeare includes this warning in its antenna instructions.
- Protect the radio and connector from rain while the coax is removed.
If the antenna is aloft or the installation cannot be reached safely, inspect what is accessible and schedule a qualified rigger or marine-electronics technician for the remaining work.
Identify the antenna, cable, and connector
Before loosening anything, photograph the antenna label, overall installation, mount, coax markings, connector, radio model, and any antenna switch or splitter. Record the antenna length and whether its coax is permanently attached or connects at the base.
Do not replace a cable or connector based only on outside diameter. RG-58, RG-8X, and other coax types require the correct connector and preparation dimensions. Shakespeare publishes separate PL-259 instructions for specific cable types. The wrong reducing adapter or poorly prepared braid can create an unreliable connection even when the plug threads onto the radio.
If the antenna includes a factory-attached cable, check its instructions before cutting or shortening it. Shakespeare's 5208-R instructions allow its cable to be shortened but state that at least three feet should remain from the antenna and that excess cable should be coiled no smaller than the specified diameter for that model. Other antennas may differ.
Inspect the antenna element and ferrule
Examine the antenna from tip to base where access permits. Look for:
- Cracks, splits, chalking, exposed fibers, or impact damage in a fiberglass radome
- A bent or corroded stainless whip
- Loose upper sections or couplings on multi-piece antennas
- Damaged O-rings, missing seals, or corrosion at threaded joints
- A ferrule that rotates independently of the antenna body
- Water staining or green corrosion emerging from the cable exit
Shakespeare's multi-section 6018 instructions tell installers to inspect and seat O-rings and tighten the section connections. Those details illustrate why seals and joints should be checked according to the exact model rather than covered with general-purpose tape or sealant.
Do not paint the radiating element, drill the radome, or fill a crack with an arbitrary adhesive. A visibly damaged antenna should be evaluated against the manufacturer's replacement criteria.
Check the mount and support hardware
Operate a ratchet mount through its normal positions while the antenna is supported. It should lock positively without excessive play. Inspect:
- Base fasteners and the deck or hardtop beneath them
- Cracks, movement, or water staining around the mounting surface
- Corrosion, bent teeth, worn pivots, and loose handles
- The 1-inch–14 threaded connection commonly used by many marine antennas
- Stand-off brackets on tall antennas
- Grounding or bonding provisions only where the specific installation calls for them
Do not use the coax to pull the antenna upright or hold it while the mount is released. Cable strain can damage the connection inside the antenna even when the outer jacket looks normal.
If bedding around the mount has failed, remove and reseal the hardware using the boatbuilder and sealant manufacturer's procedures. Tightening fasteners until the fiberglass deforms is not a repair.
Trace the coaxial cable end to end
Follow the coax from the antenna to the radio. Shakespeare's antenna instructions call for routing coax away from other electrical equipment and cables. During inspection, verify that the existing route has not been changed or compressed by later installations.
Look for:
- Sharp bends, kinks, flattened sections, or crushed dielectric
- Chafe where the cable passes through fiberglass, metal, or a moving mount
- UV damage, cracking, swelling, cuts, or exposed braid
- Cable ties pulled tight enough to deform the jacket
- Water traps and unsupported connector weight
- Contact with hot equipment, hinges, wiper mechanisms, or sharp edges
- Improvised splices or unnecessary barrel connectors
- Excess cable wound in a tight coil rather than stored to the antenna manufacturer's dimensions
Coax is not ordinary two-conductor cable. Its center conductor, dielectric, and shield geometry are part of the transmission line. A crushed or waterlogged section can affect performance even if electrical continuity remains.
Replace physically damaged coax with the type and length allowed by the antenna manufacturer. Do not repair a wet or crushed RF cable with vinyl tape and assume its performance is restored.
Inspect the PL-259 and radio socket
With power isolated, unscrew the connector by its coupling ring—not by twisting the cable. Keep the connector dry and inspect it under a bright light.
Check for:
- Green or white corrosion, moisture, or salt deposits
- A loose, bent, recessed, or overheated center pin
- Frayed braid or strands contacting the center conductor
- A connector body that rotates on the cable
- Cracked strain relief, missing seals, or a jacket pulling out of the connector
- Cross-threaded or damaged coupling threads
- Corrosion or looseness at the radio's antenna socket
Shakespeare's connector instructions show that the braid, dielectric, center conductor, adapters, O-rings, and solder or piercing features must be assembled in a specific order. A connector is not serviceable merely because it can be tightened.
Clean only as the connector and radio manufacturers direct. Do not pack the mating surfaces with grease unless the manufacturer specifies a product and location. Grease on the wrong contact can interfere with connection, while sealant on the coupling threads can hide corrosion and complicate future service.
When reconnecting, align the center pin carefully and hand-start the coupling ring to avoid cross-threading. Support the coax so its weight does not bend the radio socket.
Use continuity checks carefully
A digital multimeter can find some gross faults, but it cannot prove that an antenna system performs correctly at VHF frequencies. The expected DC reading depends on the antenna design. Some antennas appear open at DC; others include matching components that produce a different reading. Shakespeare even notes model-specific DC behavior in its technical tips.
Before measuring, disconnect the coax from both radio and antenna when the design permits, and follow the manufacturer's test procedure. A cable-only check may verify:
- Center conductor continuity end to end
- Shield continuity end to end
- No unintended short between center conductor and shield
Those checks can reveal a broken center conductor or braid short, but they do not measure RF loss, connector quality under load, antenna resonance, or standing-wave ratio.
Never use a megohmmeter or apply an external test voltage to a connected radio or antenna unless the manufacturer explicitly approves it.
When to request an SWR or power test
If the radio has lost range, reports an antenna warning, shows intermittent behavior, or has undergone connector or cable work, a marine-electronics technician can test forward power, reflected power, and voltage standing-wave ratio with equipment suitable for the marine VHF band. The procedure and acceptable results depend on the radio and antenna.
An abnormal result can come from the antenna, coax, connector, switch, splitter, or measurement setup. Replacing the radio first is not a reliable diagnosis. Likewise, a DC continuity test that passes does not clear the RF path.
Do not transmit repeatedly at high power into a known or suspected fault while trying to make the reading improve.
Storage and spring recommissioning
For storage, place a ratchet-mounted antenna in the position recommended for the cover and storage environment. Support it so the whip or radome cannot whip, bend, or rub. Do not let a cover bear directly on the antenna or coax.
Keep the coax connected unless the manufacturer or storage plan calls for removal. If a connector must remain disconnected, protect both ends with the specified dry caps; plastic bags and electrical tape can trap condensation.
In spring:
- Inspect the antenna, mount, cable, and connector again.
- Return the antenna to its operating position and lock the mount.
- Reconnect the coax with the radio powered off.
- Restore power and verify the radio's display, speaker, GPS/DSC status, and microphone.
- Perform a radio check using an appropriate local working channel or authorized automated service—not by making a routine test call on the distress channel.
- Investigate weak, intermittent, or distorted reports before relying on the system offshore or in isolated waters.
The radio's Digital Selective Calling and position functions depend on additional configuration and data sources. Antenna maintenance does not replace checking the MMSI, GPS position, power supply, microphone, and DSC operation.
Marine VHF antenna and coax checklist
- Record radio, antenna, mount, coax, connector, switch, and splitter models.
- Turn off and isolate radio power before disconnecting the coax.
- Inspect the antenna element, sections, ferrule, O-rings, and cable exit.
- Check ratchet or mast hardware, fasteners, support brackets, and bedding.
- Trace the complete coax route for chafe, crushing, heat, UV damage, and tight bends.
- Inspect PL-259 connectors and sockets for moisture, corrosion, looseness, and damaged pins.
- Use only connector instructions matched to the actual coax type.
- Do not transmit with the antenna disconnected.
- Treat multimeter checks as limited fault screening, not an RF performance test.
- Arrange an SWR and forward/reflected-power test when range or condition is uncertain.
- Secure the antenna and cable so the winter cover cannot load or abrade them.
- Complete an appropriate operational radio check after recommissioning.
Record the baseline in BoatDuty
Record the inspection date, antenna and radio models, coax type and markings, connector condition, mount hardware, corrosion locations, continuity or technician test results, parts replaced, and the final radio-check outcome in BoatDuty. Photos of the connector, cable route, and mount provide a useful comparison when range or reception changes later.
A dependable VHF installation is more than a powered-up radio. A sound antenna, secure mount, dry connectors, and undamaged coax preserve the transmission path that carries a call beyond the cockpit when it matters.
